Lenovo Desktops

Lenovo IdeaCentre Tower PC – Specifications

• Operating System: Windows 11 Home or Pro

• Processor Options:

  • Intel® Core™ i7-14700 (16 cores, 24 threads, up to 5.3 GHz)

• Graphics:

  • Integrated Intel® UHD Graphics 730 or 770

  • Optional: Intel® Arc™ A310 4GB discrete graphics

Memory & Storage

• Memory:

  • 8 GB, 16 GB, or 32 GB DDR4-3200 MHz

  • Dual-channel support (2x DIMMs)

  • Maximum supported: 32 GB

• Storage:

  • 512 GB or 1 TB PCIe® Gen4 NVMe™ SSD

  • Optional: 1 TB HDD (7200 rpm) for additional storage

Design & Build

• Form Factor: Tower (13.6L)

• Dimensions (W x D x H): 145 x 287.9 x 340 mm (5.71 x 11.33 x 13.39 inches)

• Weight: Approximately 4.9 kg (10.8 lbs)

• Color: Cloud Grey

Ports & Connectivity

• Front Ports:

  • 1 x USB-C® (USB 5Gbps / USB 3.2 Gen 1) with 15W charging

  • 2 x USB-A (USB 5Gbps / USB 3.2 Gen 1)

  • 1 x Headphone / microphone combo jack (3.5mm)

• Rear Ports:

  • 4 x USB-A (Hi-Speed USB / USB 2.0)

  • 1 x HDMI® 2.1 TMDS

  • 1 x VGA

  • 1 x Ethernet (RJ-45)

  • 1 x Headphone (3.5mm)

  • 1 x Power connector

• Networking:

  • Gigabit Ethernet (1x RJ-45)

  • Optional: Wi-Fi® 6E (802.11ax 2x2) + Bluetooth® 5.3 (M.2 card)

Expansion & Slots

• Bays:

  • 1 x 3.5" disk bay

• Expansion Slots:

  • 1 x PCIe® 4.0 x16 (full height)

  • 1 x PCIe® 3.0 x1 (full height)

  • 2 x M.2 slots (one for WLAN, one for SSD)

Audio & Input

• Audio Codec: Realtek ALC3252

• Input Devices:

  • Lenovo® Calliope Keyboard (USB connector), black

  • Lenovo® Calliope Mouse (USB connector), black

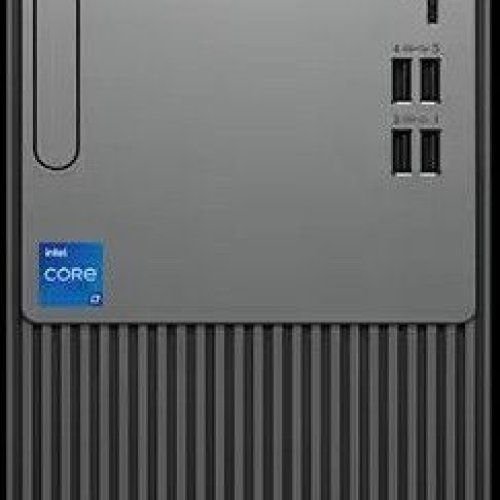

Lenovo ThinkCentre Neo 50t Gen 5 Intel Tower PC – Specifications

• Operating System: Windows 11 Pro

• Processor Options:

  • Intel® Core™ i7-13700 (16 cores, 24 threads)

• Graphics Options:

  • Integrated Intel® UHD Graphics 730/770

  • Optional Intel® Arc™ A310 Discrete Graphics (4GB GDDR6)

Memory & Storage

• Memory:

  • Up to 64 GB DDR5-5600 UDIMM

  • 2 × DIMM slots (expandable)

• Storage:

  • Up to 1 TB PCIe Gen4 SSD

  • Optional 2.5" and 3.5" bays for additional drives

Connectivity & Ports

• Front Ports:

  • 1 × USB-C 3.2 Gen 1 (data transfer and 5V@3A charging)

  • 2 × USB 3.2 Gen 1

  • 2 × USB 3.2 Gen 2

  • 1 × headphone/microphone combo jack (3.5mm)

  • 1 × microphone (3.5mm)

• Rear Ports:

  • 4 × USB 2.0

  • 1 × HDMI 1.4b

  • 1 × DisplayPort™ 1.4

  • 1 × VGA

  • 1 × Ethernet (RJ-45)

  • 1 × serial (9-pin)

• Optional Rear Ports:

  • 1 × parallel

  • 2 × PS/2

• Networking:

  • Optional Intel® Wi-Fi 6E AX201 (2x2) + Bluetooth® 5.2

  • Optional Intel® Wi-Fi 6E AX211 (2x2) + Bluetooth® 5.3

Audio & Input

• Audio Codec: Realtek® ALC3252

• Audio Ports:

  • 1 × headphone (3.5mm)

  • 1 × microphone (3.5mm)

• Input Devices:

  • Optional Lenovo USB Keyboard and Mouse

Security & Manageability

• Security Features:

  • Discrete TPM 2.0, TCG certified

  • Optional Smart Cable Clip

  • Kensington® Security Slot™ (3 x 7 mm)

  • Padlock Loop

  • Chassis intrusion switch

  • BIOS security (administrator password, power-on password, hard disk password, cover presence switch, individual USB port disablement, smart USB protection)

• Manageability:

  • Optional Intel® vPro® Technology

Dimensions & Weight

• Dimensions (W × D × H): 15.5 × 30.3 × 33.7 cm

• Weight: Approximately 4.7 kg (varies by configuration)

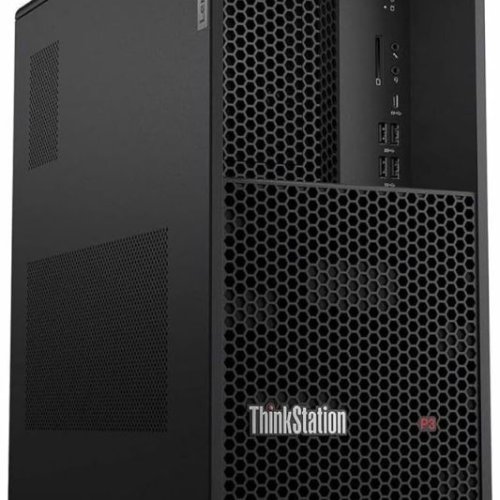

Lenovo ThinkStation P3 Tower – Specifications

• Operating System: Windows 11 Pro

• Processor Options:

  • Intel Core i3-13700 (13th Gen)—16 cores (8P + 8E), up to 5.1 GHz, 30 MB L3 cache

• Chipset: Intel W680 with vPro® support in select models

• Graphics Options:

  • Integrated Intel UHD Graphics 770 or 730

  • Discrete NVIDIA options such as RTX A2000, T1000, or professional Ada-series GPUs

Memory & Storage

• Memory:

  • 32 GB DDR5 UDIMM (e.g., DDR5-4400 or DDR5-4800), expandable to 128 GB across 4 DIMM slots

• Storage:

  • 1 TB PCIe NVMe M.2 SSD included

  • Additional storage options include up to three 2.5"/3.5" bays and multiple M.2 slots; total storage capacity can reach multiple TBs

Expansion & Connectivity

• PCIe Slots:

  • Up to two PCIe 4.0 x16 (including one x4 mechanical slot)

  • Up to two PCIe 3.0 x1 slots

• Front I/O: USB-C (Gen 2), USB-A (Gen 2 and Gen 1), headphone/mic combo

• Rear I/O: HDMI 2.1, DisplayPort (1.4), multiple USB-A ports, Gigabit Ethernet, optional PS/2 and serial ports

• Networking: Gigabit Ethernet included; optional Wi-Fi 6E and Bluetooth available via add-in card

Power & Security

• Power Supply: Available in 750 W or 1100 W Platinum-efficient units

• Security Features:

  • Discrete TPM 2.0 (dTPM)

  • Chassis intrusion switch, Kensington Lock support

  • ThinkShield firmware and BIOS enhancements

Design & Physical Specs

• Form Factor: Tower (compact yet spacious)

• Dimensions: Approximately 415 × 180 × 370 mm

• Weight: Around 13.6 kg (depending on configuration)

• Certifications: ENERGY STAR 8.0, EPEAT Gold, TCO 9.0, RoHS
